SKU LW3D2030N2A1-00

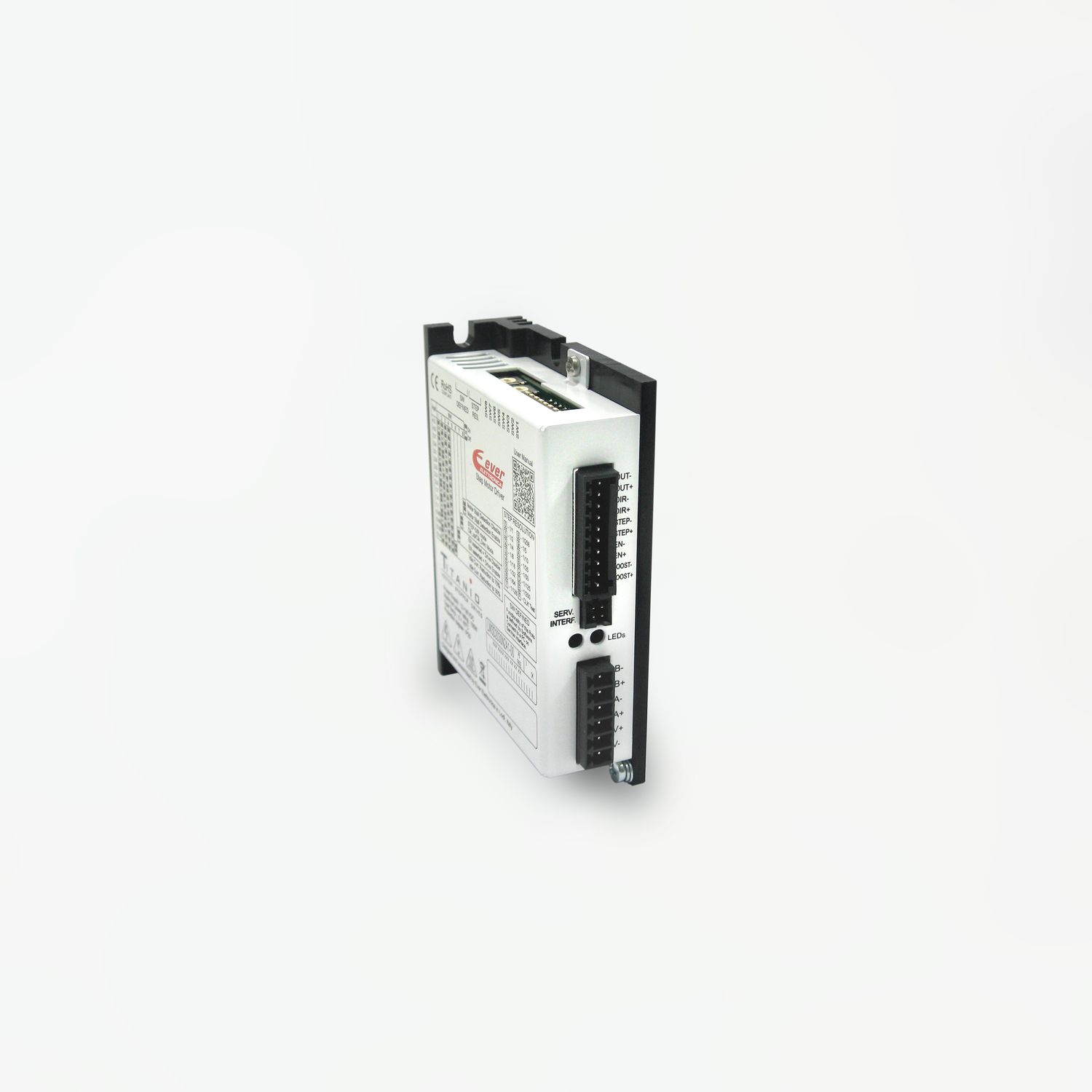

Clock & Direction stepper motor drives up to 36 Vdc - 3.0 Apeak
€233,87
Connectors kit
Please choose
Software kit
Please choose
In stock: 1 available
1
Product Details
| Power supply voltage | 12 [Vdc] ÷ 36 [Vdc] |
| Output current | 0.10 [A/ph rms] ÷ 3.00 [A/ph rms] 0.14 [A/ph peak] ÷ 4.20 [A/ph peak] |
| Control mode | Clock & Direction |
| Power stage | H bridge bipolar chopper at 40 kHz. |
| Mounting | Wall mounting |
| Digital inputs | 4 optoisolated 5 - 24Vdc. |
| Digital outputs | 1 Digital OUT 24 Vdc - 100 mA for status monitoring |
| Open or Close loop | Open loop |
| Step resolution | Emulated from full step up (200 pps - 1.8°) to 1/256 and from 1/5 up to 1/250 step. |
| Safety protections | Over/Under voltage, Over Current, Over Temperature, Short Circuit Phase/Phase and Phase/Ground |
| Status monitoring | 3 LED with guiding light (green and red/yellow) |
| Operative temperature | 0 [°C]÷ 40 [°C] |
| Storage temperature | 0 [°C] ÷ 55 [°C] |
| Humidity | 5 [%] ÷ 85 [%] |
| Protection class | IP20 |
| Dimensions H x L x W | 95.0 [mm] x 26.0 [mm] x 73.0 [mm] |
| Weight | 0.20 [Kg] |
| Software settings and connections | Service SCI interface for configuration and real-time debugging. |
| For complete information or documents related to this product, visit this page. |
Clock & Direction stepper motor drives up to 36 Vdc - 3.0 Apeak
