SKU EPDO-02

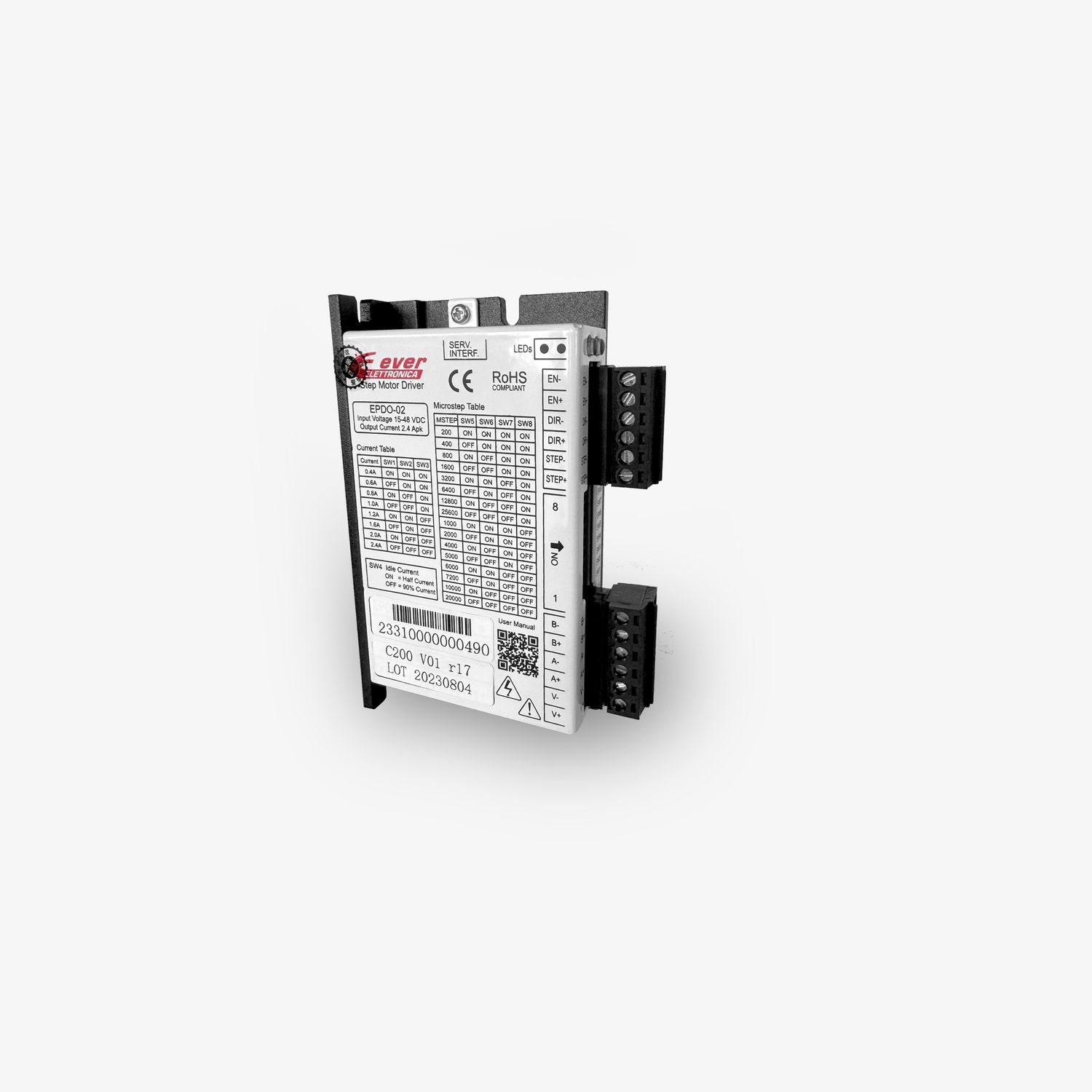

Clock & Direction stepper motor drives up to 48 Vdc - 2.4 Apeak
Connectors kit
Please choose
Sold out
Product Details
| Power supply voltage | 15 [Vdc] ÷ 48 [Vdc] |
| Output current | 0.28 [A/ph rms] ÷ 1.70 [A/ph rms] 0.40 [A/ph peak] ÷ 2.40 [A/ph peak] |
| Control mode | Clock & Direction |
| Mounting | Wall mounting |
| Digital inputs | 3 optoisolated 5 - 24Vdc |
| Open or Close loop | Open loop |
| Step resolution | Emulated from full step up (200 pps - 1.8°) to 1/128 and from 1/5 up to 1/100 step |
| Safety protections | Over/Under voltage, Over Current, Over Temperature, Short Circuit Phase/Phase and Phase/Ground |
| Status monitoring | 2 LEDs |
| Operative temperature | 5 [°C]÷ 40 [°C] |
| Storage temperature | -25 [°C] ÷ 55 [°C] |
| Humidity | 5 [%] ÷ 85 [%] |
| Protection class | IP20 |
| Dimensions H x L x W | 93.0 [mm] x 21.5 [mm] x 52.0 [mm] |
| Weight | 0.25 [Kg] |
| Software settings and connections | Service SCI interface for configuration and real-time debugging. |
| For complete information or documents related to this product, visit this page. |
