SKU SW4A3070N241-01-S0201

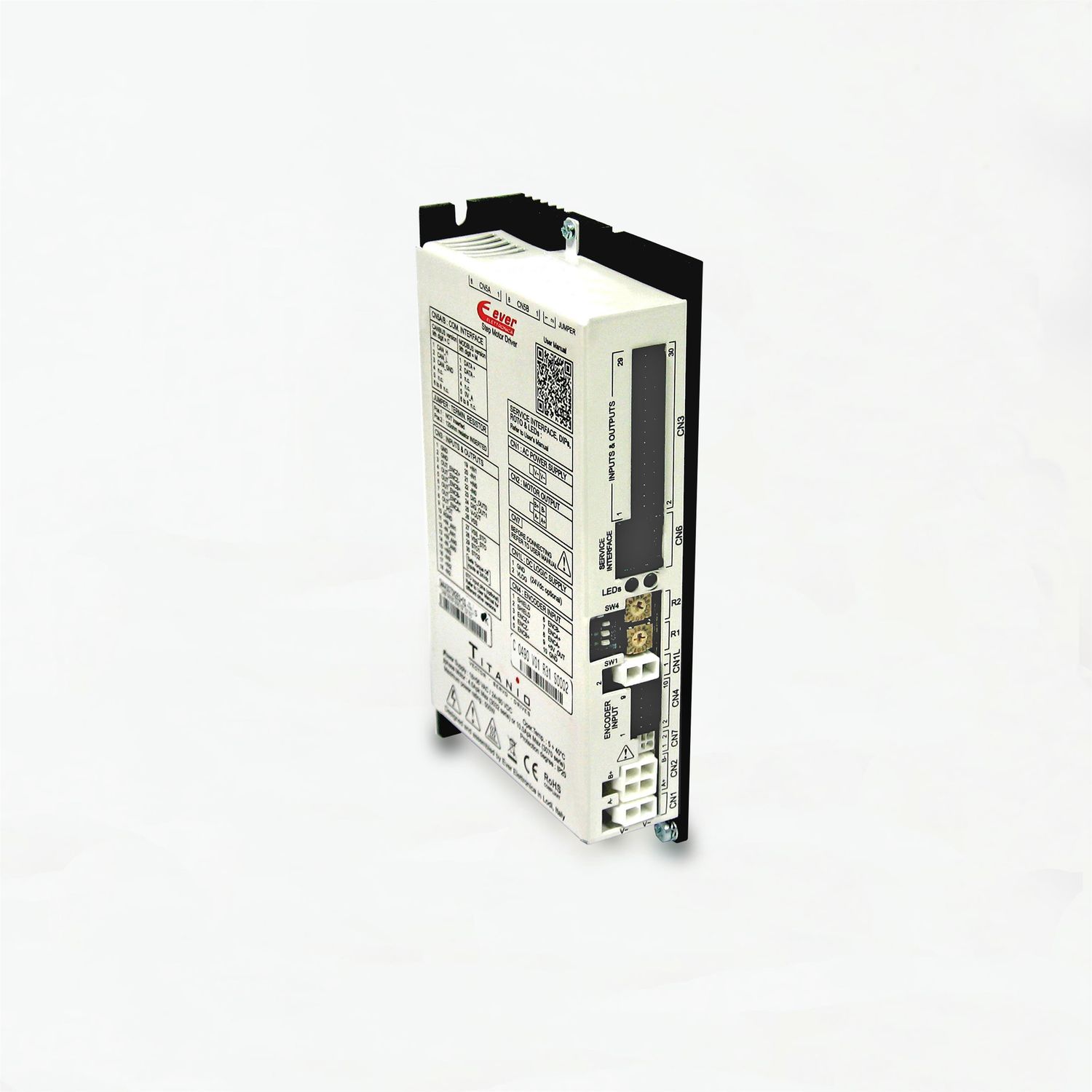

Clock & Direction stepper motor drives up to 56 Vac - 10.0 Apeak
€401,38
Connectors kit
Please choose
Software kit
Please choose
In stock: 2 available
1
Product Details
| Power supply voltage | 18 [Vac] ÷ 56 [Vac] |
| Separated logic power supply | 24 [Vdc] ÷ 80 [Vdc] |
| Output current | 0.0 [A/ph rms] ÷ 7.1 [A/ph rms] 0.0 [A/ph peak] ÷ 10,0 [A/ph peak] |
| Control mode | Clock & Direction |
| Feedback Interface | Encoder interface: incremental encoder not isolated input 5V Differential (RS422)or 5V Single-Ended (TTL/CMOS) encoder output not isolated 5V Differential (RS422) |
| Mounting | Wall mounting |
| Digital inputs | 4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz |
| Digital outputs | 2 optoisolated digital outputs PNP, 24 Vdc - 100 mA |
| Open or Close loop | Open loop or Closed loop |
| Step resolution | Stepless Control Technology (65536 positions per turn) |
| Safety protections | Over/UnderVoltage, OverCurrent, OverTemperature,Phase/Phase and Phase/Ground Short |
| Operative temperature | 0 [°C]÷ 40 [°C] |
| Storage temperature | -25 [°C] ÷ +55 [°C] |
| Humidity | 5 [%] ÷ 85 [%] |
| Protection class | IP20 |
| Dimensions H x L x W | 148.8 [mm] x 82.0 [mm] x 30.0 [mm] |
| Weight | 0.45 [Kg] |
| Software settings and connections | Service SCI interface for configuration and real time debug |
| For complete information or documents related to this product, visit this page. |
