SKU LW3D3032N0A1-00

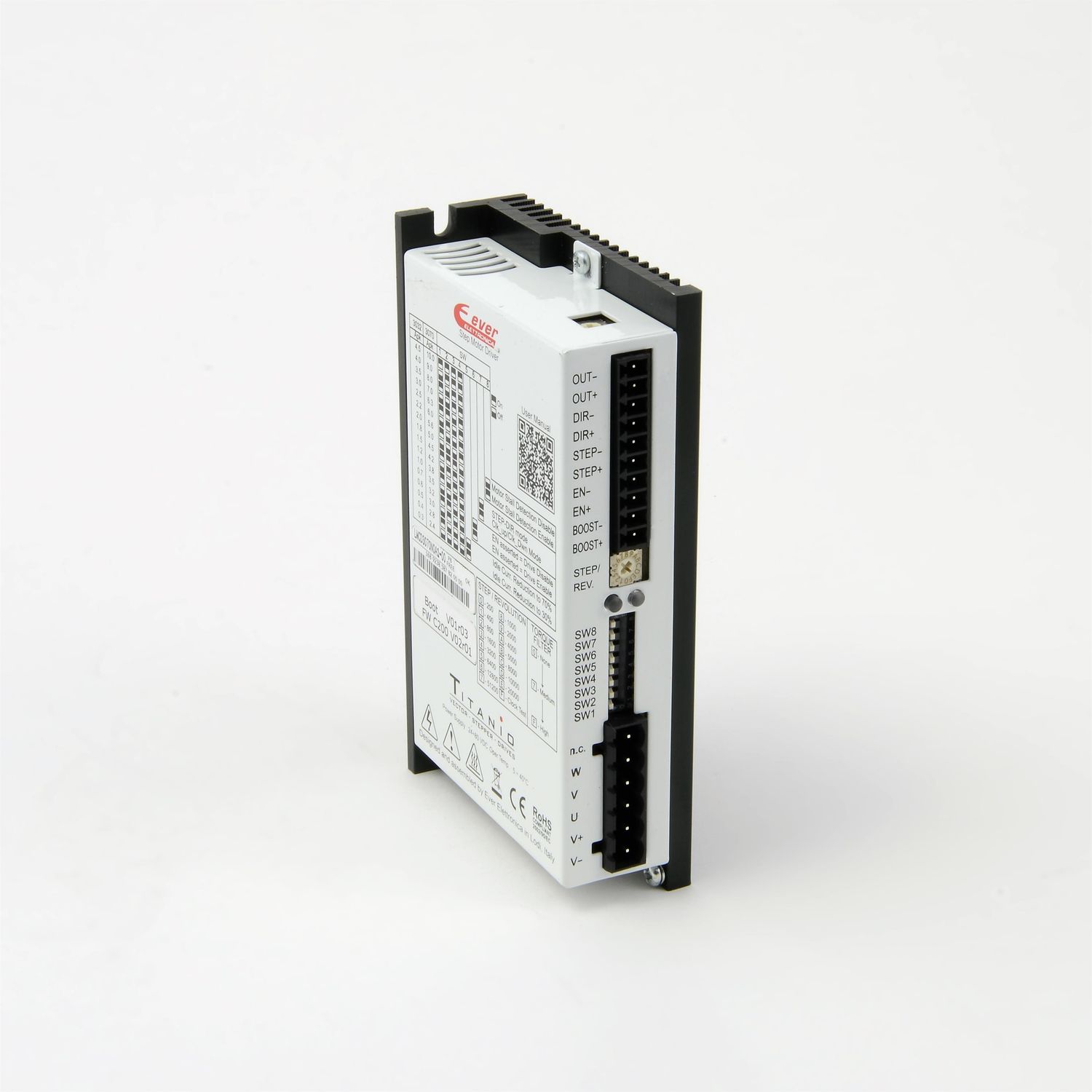

Clock & Direction stepper motor drives up to 80 Vdc - 4.5 Apeak
€253,76
Connectors kit
Please choose
In stock: 5 available
1
Product Details
| Power supply voltage | 24 [Vdc] ÷ 80 [Vdc] |
| Output current | 0.2 [A/ph rms] ÷ 3.2 [A/ph rms] 0.3 [A/ph peak] ÷ 4.5 [A/ph peak] |
| Control mode | Clock & Direction |
| Power stage | H bridge bipolar chopper at 40 kHz. |
| Mounting | Wall mounting |
| Digital inputs | 4 optoisolated 2 - 24Vdc 2 MHzNPN or PNP or Line Driver. |
| Digital outputs | 1 Digital OUT 24 Vdc - 100 mA for status monitoring |
| Open or Close loop | Open loop |
| Step resolution | From full step up (200 pps - 1.8°) to 1/256 (emulated) |
| Safety protections | Over/Under voltage, Over Current, Over Temperature, Short Circuit Phase/Phase and Phase/Ground |
| Status monitoring | 3 LED with guiding light (green and red/yellow) |
| Operative temperature | 0 [°C]÷ 50 [°C] |
| Storage temperature | 0 [°C] ÷ 55 [°C] |
| Humidity | 0 [%] ÷ 90 [%] |
| Protection class | IP20 |
| Dimensions H x L x W | 128.0 [mm] x 30.0 [mm] x 74.0 [mm] |
| Weight | 0.29 [Kg] |
| For complete information or documents related to this product, visit this page. |
Clock & Direction stepper motor drives up to 80 Vdc - 4.5 Apeak
