SKU SW4D2042H241-00c0680

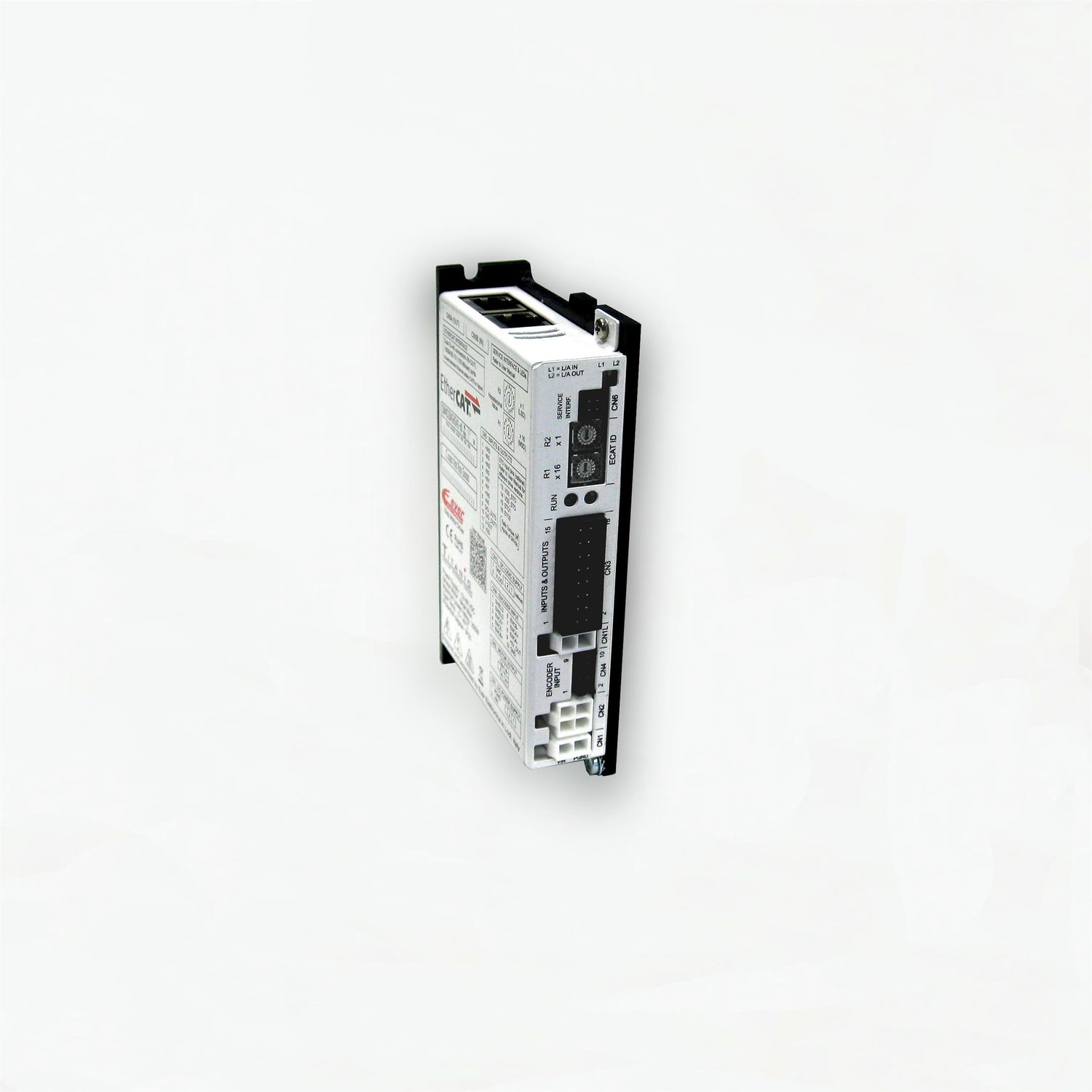

EtherCAT stepper motor drives in open or closed loop up to 48 Vcc - 6.0 Apeak
€389,63
Kit connettori
Please choose
Kit software
Please choose
In stock: 5 available
1
Product Details
| Power supply voltage | 12 [Vdc] ÷ 48 [Vdc] |
| Separated logic power supply | 12 [Vdc] ÷ 48 [Vdc] |
| Output current | 0.0 [A/ph rms] ÷ 4.2 [A/ph rms] 0.0 [A/ph peak] ÷ 6.0 [A/ph peak] |
| Control mode | EtherCAT CoE (DS402) |
| Feedback Interface | not isolated input for incremental encoder 5V differential RS422 or 5V single ended (TTL/CMOS) |
| Mounting | Wall mounting |
| Digital inputs | 4 optocoupled digital inputs 2-24 Vdc NPN, PNP or Line Driver 2 Mhz |
| Digital outputs | 2 optocoupled digital outputs PNP, 24 Vdc - 100 mA |
| Open or Close loop | Open loop or Closed loop |
| Step resolution | Stepless Control Technology (65536 positions per turn) |
| Safety protections | Over/UnderVoltage, OverCurrent, OverTemperature,Phase/Phase and Phase/Ground Short |
| Operative temperature | 5 [°C]÷ 40 [°C] |
| Storage temperature | -25 [°C] ÷ 55 [°C] |
| Humidity | 5 [%] ÷ 85 [%] |
| Protection class | IP20 |
| Dimensions H x L x W | 121 [mm] x 74 [mm] x 26 [mm] |
| Weight | 0.28 [Kg] |
| Software settings and connections | Service SCI interface for configuration and real time debug |
| For complete information or documents related to this product, visit this page. |
EtherCAT stepper motor drives in open or closed loop up to 48 Vcc - 6.0 Apeak
