SKU SW4D2070T241-02c0981

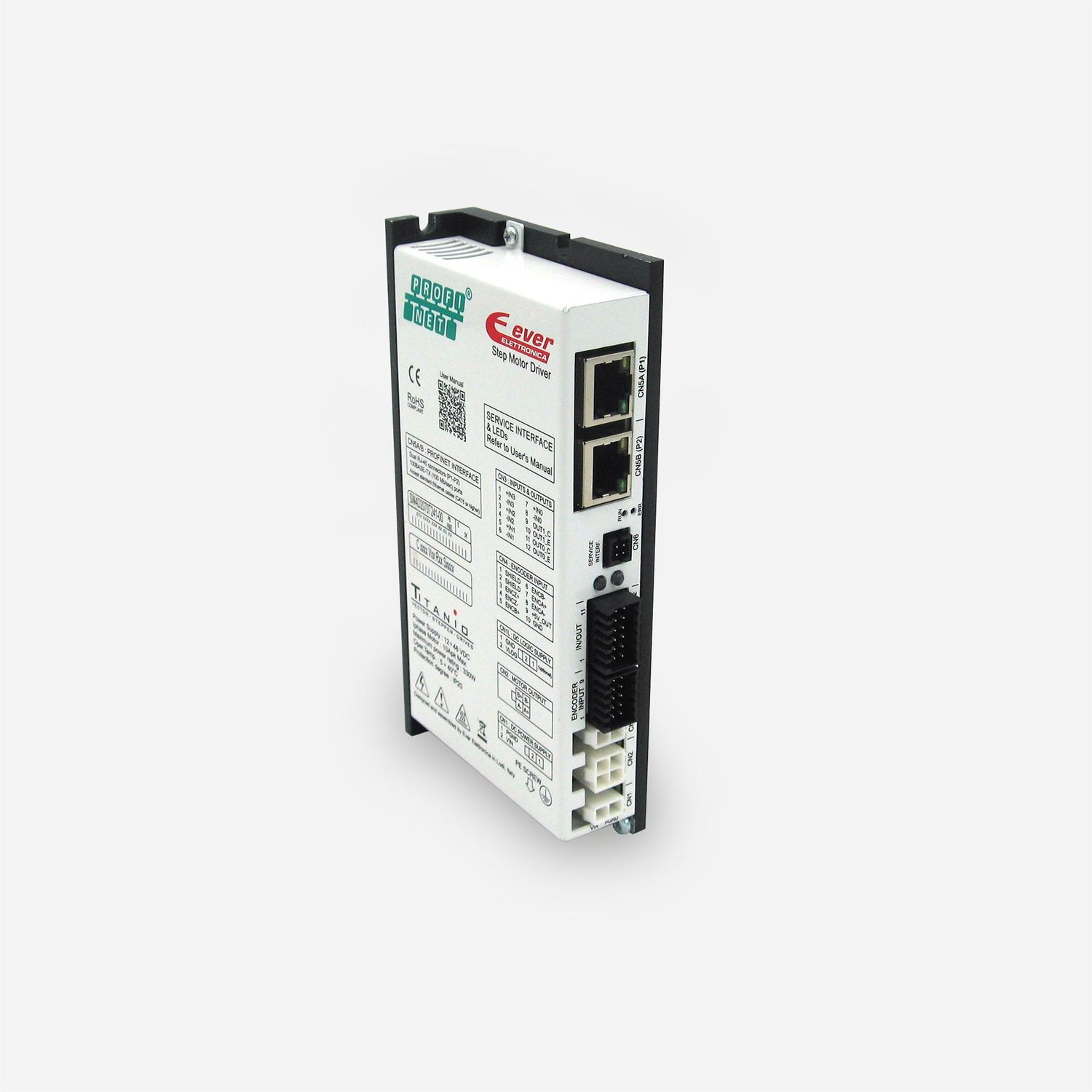

ProfiNET stepper motor drives in open or closed loop up to a 48 Vdc - 10.0 Apeak
Connectors Kit
Please choose
Software kit
Please choose
Sold out
Product Details
| Power supply voltage | 12 [Vcc] ÷ 48 [Vcc] |
| Separated logic power supply | 12 [Vcc] ÷ 48 [Vcc] |
| Output current | 0.0 [A/ph rms] ÷ 7.1 [A/ph rms] 0.0 [A/ph peak] ÷ 10.0 [A/ph peak] |
| Control mode | Profinet (PROFIdrive) |
| Feedback Interface | interface for absolute encoder (not isolated) 5V BiSS-C or SSI |
| Mounting | Wall mounting |
| Digital inputs | 4 optoisolated digital inputs 5-24 Vdc NPN, PNP or Line-Driver |
| Digital outputs | 2 optoisolated digital outputs PNP, 24 Vdc - 100 mA |
| Open or Close loop | Closed loop with absolute multiturn encoder |
| Step resolution | Stepless Control Technology (65536 emulated positions per turn) |
| Safety protections | Over/UnderVoltage, OverCurrent, OverTemperature,Phase/Phase and Phase/Ground Short |
| Operative temperature | 0 [°C]÷ 40 [°C] |
| Storage temperature | -25 [°C] ÷ +55 [°C] |
| Humidity | 5 [%] ÷ 85 [%] |
| Protection class | IP20 |
| Dimensions H x L x W | 150.2 [mm] x 27.0 [mm] x 79.5 [mm] |
| Weight | 0.29 [Kg] |
| Software settings and connections | SCI serial service interface for configuration and debug in real time. |
| For complete information or documents related to this product, visit this page. |
ProfiNET stepper motor drives in open or closed loop up to a 48 Vdc - 10.0 Apeak
