SKU MT11HE10007M4LC

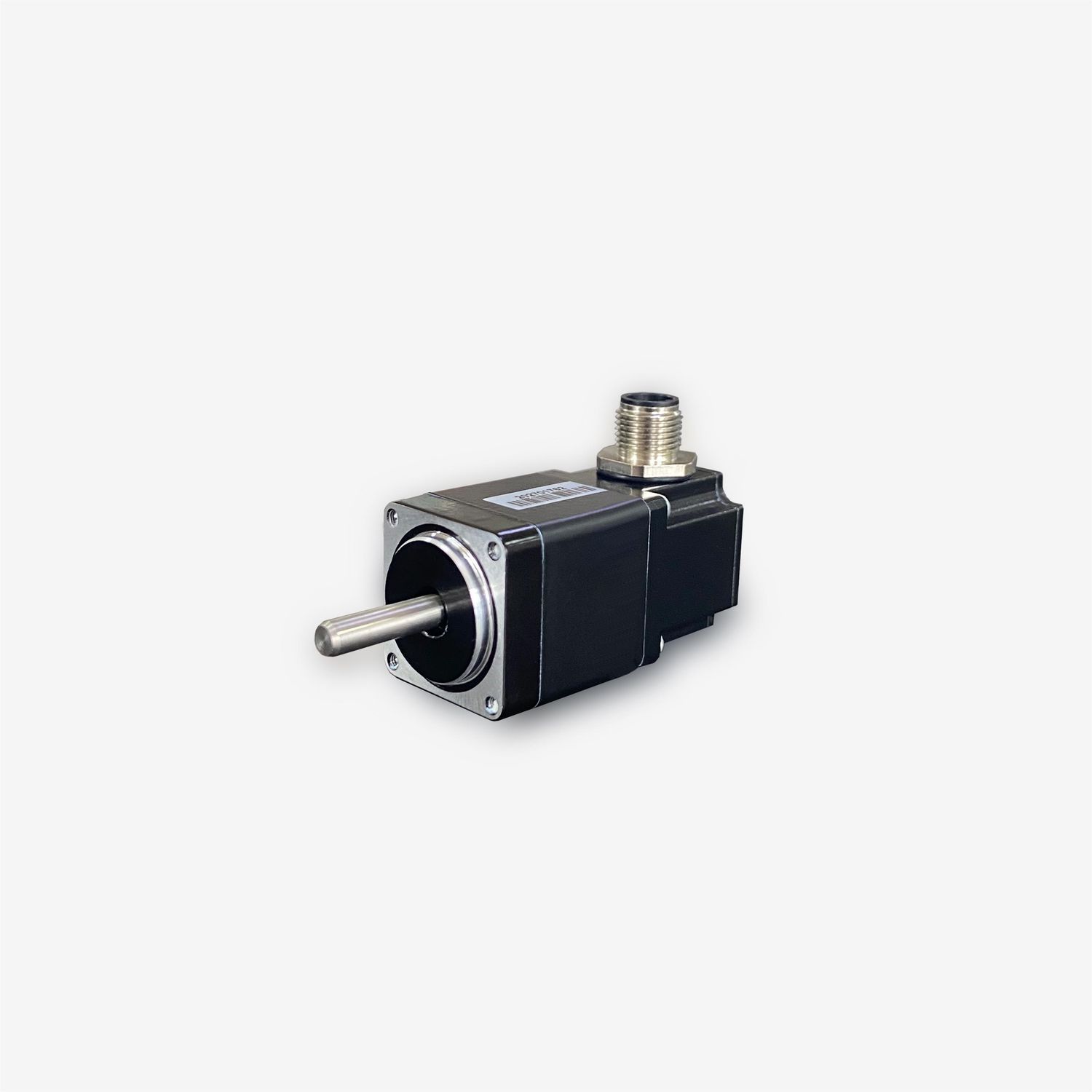

NEMA 11 stepper motor with IP65 protection and 7.1 Ncm holding torque
€142,11
In stock: 5 available
1
Product Details
| Flange | NEMA 11 - 28 mm square |
| Bipolar holding torque | 7.1 [Ncm] min. |
| Step angle | 1.8 [°] ± 5 [%] |
| Steps per rotation | 200 |
| Rated voltage | 3.75 [Volt] |
| Rated current | 6.7 [A/ph] |
| Shaft | Single shaft |
| Phase resistance | 5.60 [Ohm] ± 10 [%] |
| Phase inductance | 4.00 [mH] ± 20 [%] |
| Rotor inertia | 9 [g.cm²] |
| Wires number | 4 pins for bipolar connection |
| Wires output | With IP65 connector |
| Ambient temperature | -20 [°C] ~ +40 [°C] |
| Temperature rise | 80 [K] |
| Humidity | 15 [%] ~ 90 [%] |
| Depth | 24.2 [mm] |
| Insulation resistance | 100 [Mohm] min. |
| Dielectric strength | 500 [VAC 1 Minute] |
| Insulation class | Class B, 130°C |
| Class protection | IP65 |
| Max. shaft radial load | 21 [N] |
| Max. shaft axial load | 10 [N] |
| Dimensions H x L x W | 51.0 [mm] x 28.0 [mm] x 28.0 [mm] |
| Weight | 0.13 [Kg.] |
| For complete information or documents related to this product, visit this page. |
