SKU MT17HE18010M4V

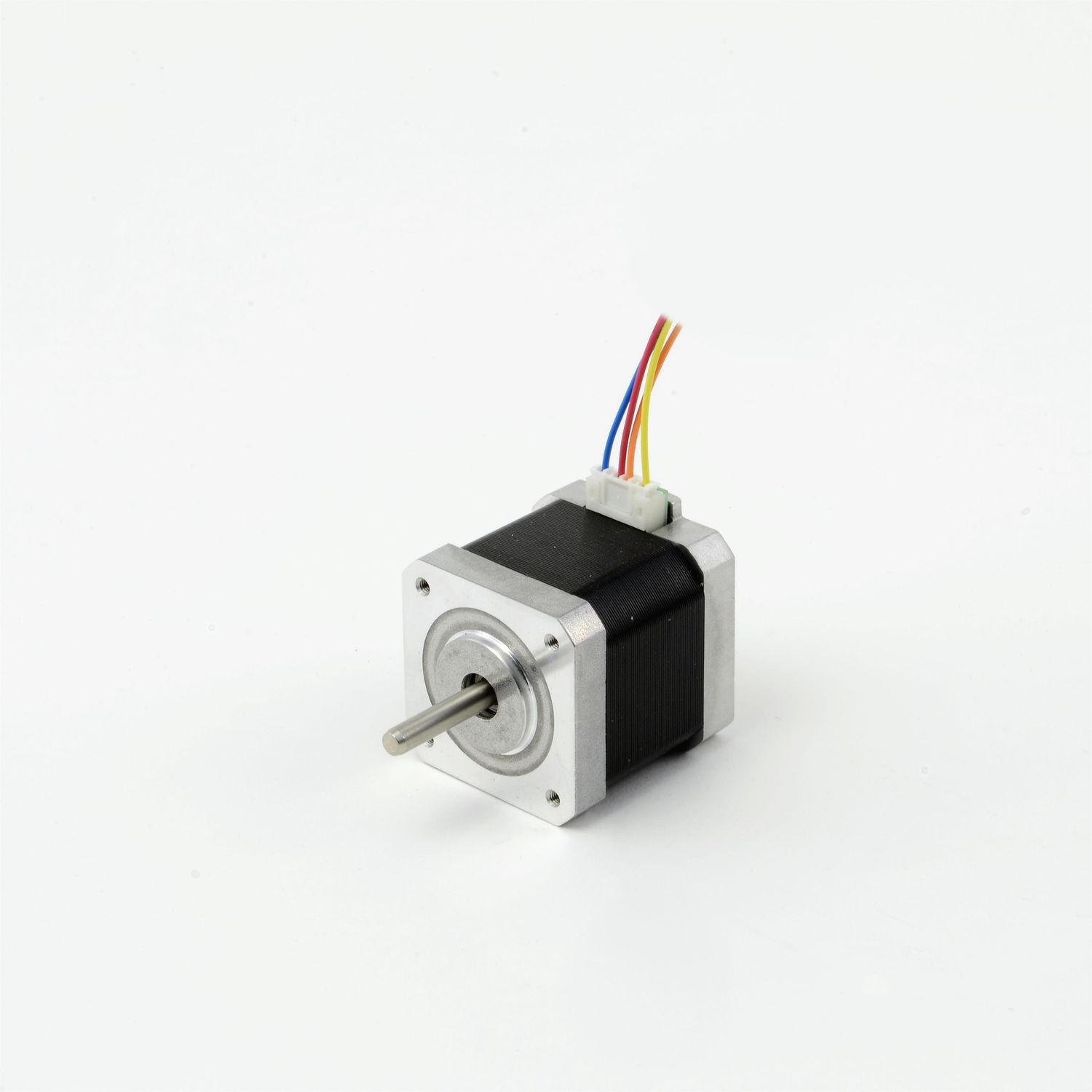

NEMA 17 stepper motor with 50.0 Ncm holding torque
Sold out
Product Details
| Flange | NEMA 17 - 42 mm square |
| Bipolar holding torque | 50.0 [Ncm] min. |
| Step angle | 1.8 [°] ± 5 [%] |
| Rated voltage | 4.30 [Volt] |
| Rated current | 1.00 [A/ph] |
| Shaft | Single shaft |
| Phase resistance | 4.30 [Ohm] ± 10 [%] |
| Phase inductance | 10.00 [mH] ± 20 [%] |
| Rotor inertia | 69 [g.cm²] |
| Wires number | 4 wires for bipolar connection |
| Wires output | With connector |
| Ambient temperature | -20 [°C] ~ +10 [°C] |
| Temperature rise | 80 [K] |
| Humidity | 15 [%] ~ 90 [%] |
| Depth | 43.7 [mm] |
| Insulation resistance | 100 [Mohm] min. |
| Dielectric strength | 500 [VAC 1 Minute] |
| Insulation class | Classe B, 130°C |
| Class protection | IP30 |
| Max. shaft radial load | 21 [N] |
| Max. shaft axial load | 10 [N] |
| Dimensions H x L x W | 42.0 [mm] x 42.0 [mm] x 43.7 [mm] |
| Weight | 0.31 [Kg.] |
| For complete information or documents related to this product, visit this page. |
