SKU MT17HE19020H401

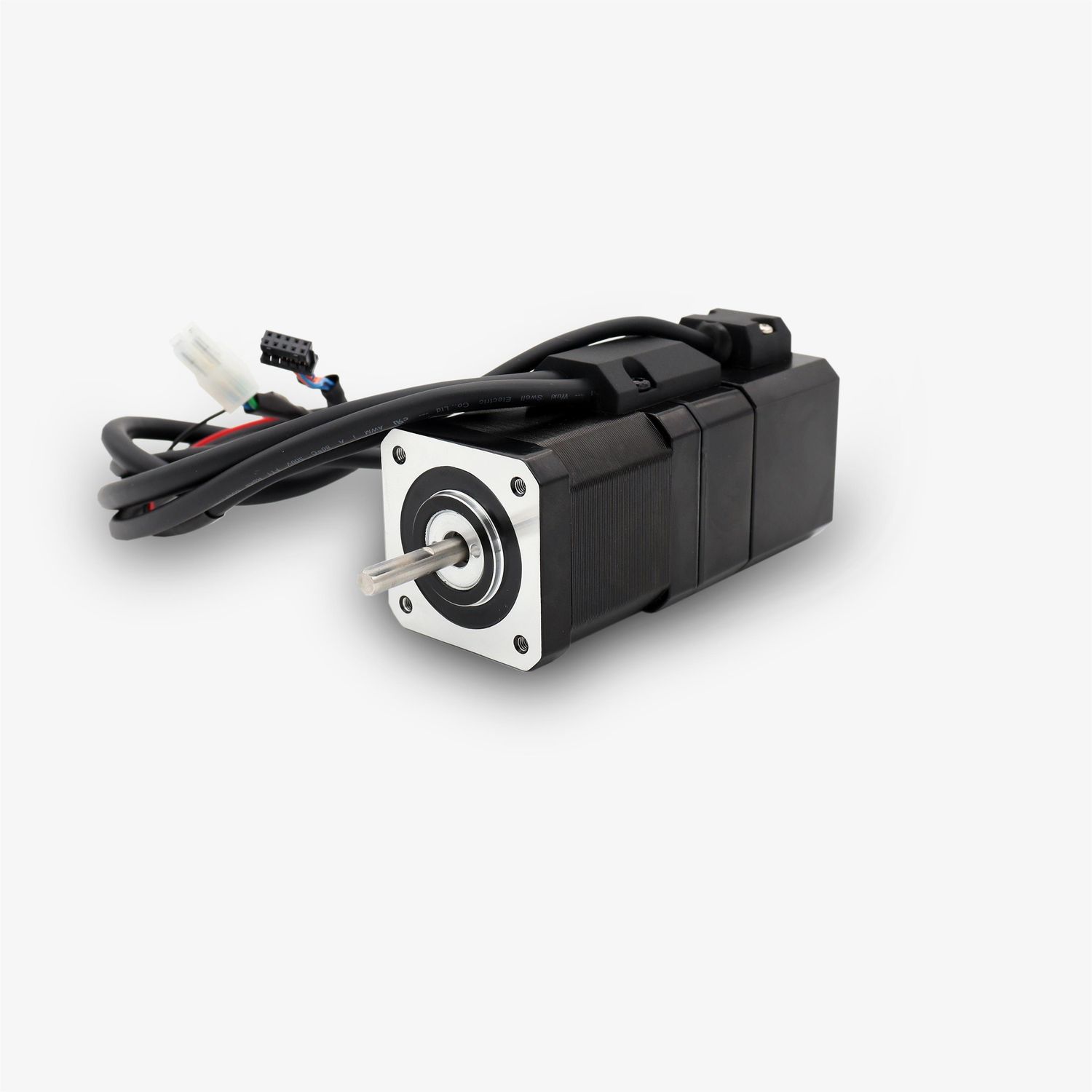

NEMA 17 stepper motor with incremental encoder, brake, IP65 protection and 48.0 Ncm holding torque
Sold out
Product Details
| Flange | NEMA 17 - 42 mm square |
| Bipolar holding torque | 48.0 [Ncm] min. |
| Step angle | 1.8 [°] ± 5 [%] |
| Rated voltage | 2.70 [Volt] |
| Rated current | 2.00 [A/ph] |
| Shaft | Double shaft with encoder and brake mounted |
| Phase resistance | 1.35 [Ohm] ± 10 [%] |
| Phase inductance | 2.80 [mH] ± 20 [%] |
| Rotor inertia | 77 [g.cm²] |
| Wires number | 4 wires for bipolar connection |
| Wires output | Lead wires output |
| Ambient temperature | -20 [°C] ~ +50 [°C] |
| Temperature rise | 80 [K] |
| Humidity | 15 [%] ~ 90 [%] |
| Depth | 48.1 [mm] |
| Insulation resistance | 100 [Mohm] min. |
| Dielectric strength | 500 [VAC 1 Minute] |
| Insulation class | Class B, 130° |
| Class protection | IP50 |
| Max. shaft radial load | 21 [N] |
| Max. shaft axial load | 10 [N] |
| Dimensions H x L x W | 42,0 [mm] x 42,0 [mm] x 100.6 [mm] |
| Weight | 0.39 [Kg.] |
| For complete information or documents related to this product, visit this page. |
Feedback
| Feedback | Incremental encoder |
| Encoder resolution | 1000 [ppr] |
| Encoder supply voltage | 5.0 [Vcc] ~ 5.0 [Vcc] ± 10 [%] |
| Encoder outputs type | Line Driver |
Certifications
| Certifications | CE, RoHS, REACH |
Brake
| Power | 6.5 [W] |
| Power supply voltage | 24 [Vdc] |
| Braking torque | 0.5 [Nm] |
NEMA 17 stepper motor with incremental encoder, brake, IP65 protection and 48.0 Ncm holding torque
