SKU MT23HE22015B4F1

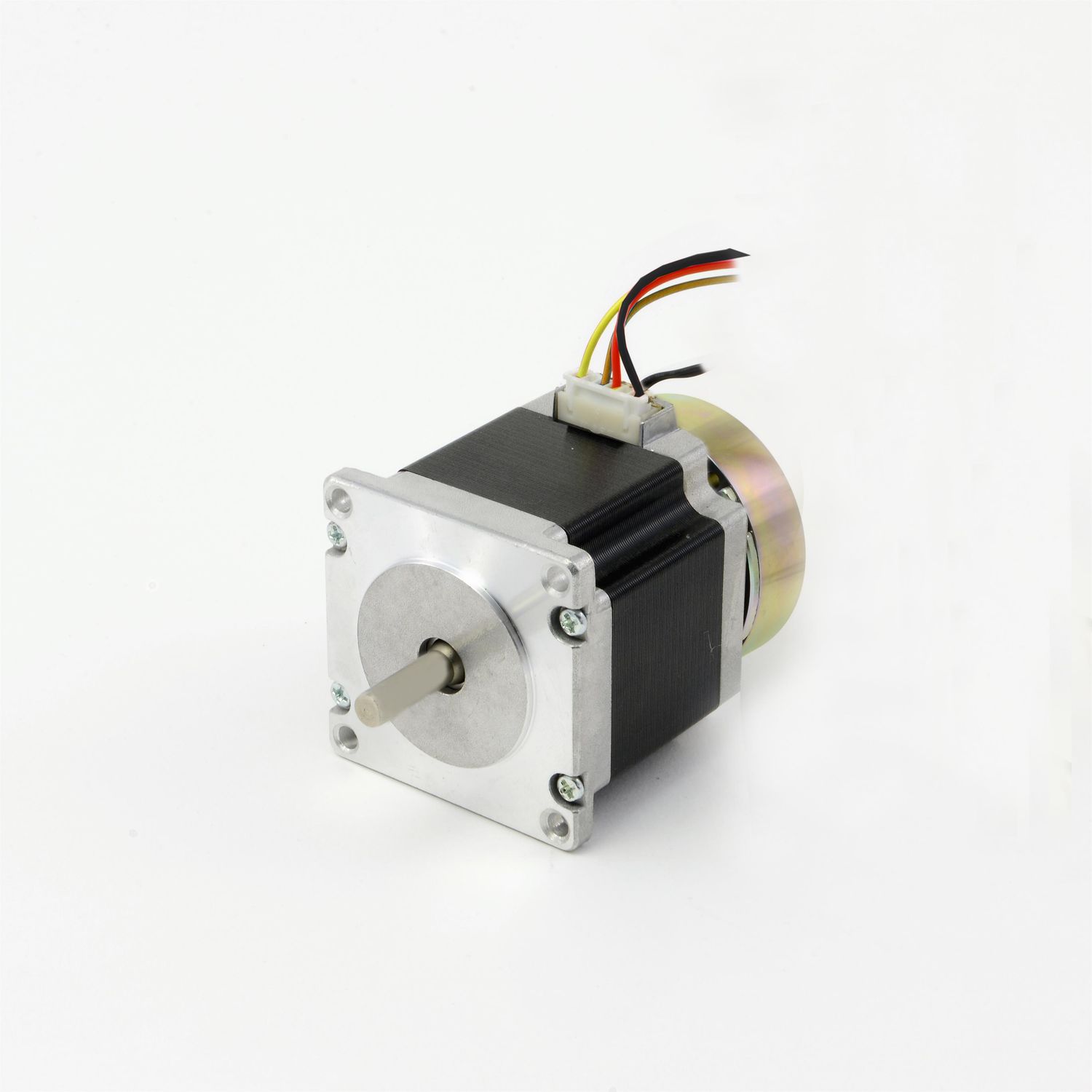

NEMA 23 stepper motor with brake and 100.0 Ncm holding torque
€98,95
In stock: 5 available
1
Product Details
| Flange | NEMA 23 - 56 mm square |
| Bipolar holding torque | 100.0 [Ncm] min. |
| Step angle | 1.8 [°] ± 5 [%] |
| Steps per rotation | 200 |
| Rated voltage | 4.35 [Volt] |
| Rated current | 1.50 [A/ph] |
| Shaft | Double shaft with brake mounted |
| Phase resistance | 2.90 [Ohm] ± 10 [%] |
| Phase inductance | 9.20 [mH] ± 20 [%] |
| Rotor inertia | 290 [g.cm²] |
| Wires number | 4 wires for bipolar connection |
| Wires output | With connector |
| Ambient temperature | -20 [°C] ~ +50 [°C] |
| Temperature rise | 80 [K] |
| Humidity | 15 [%] ~ 90 [%] |
| Depth | 53.3 [mm] |
| Insulation resistance | 100 [Mohm] min. |
| Dielectric strength | 500 [VAC 1 Minute] |
| Insulation class | Class B, 130°C |
| Class protection | IP40 |
| Max. shaft radial load | 75 [N] |
| Max. shaft axial load | 15 [N] |
| Dimensions H x L x W | 56.4 [mm] x 56.4 [mm] x 84.2 [mm] |
| Weight | 0.70 [Kg.] |
| Options | Brake mounted: 24 Vdc - 1.0 Nm braking force |
| For complete information or documents related to this product, visit this page. |
Brake
| Power | 9 [W] |
| Power supply voltage | 24 [Vdc] |
| Braking torque | 1 [Nm] |
