SKU MT34HE50040M4VK

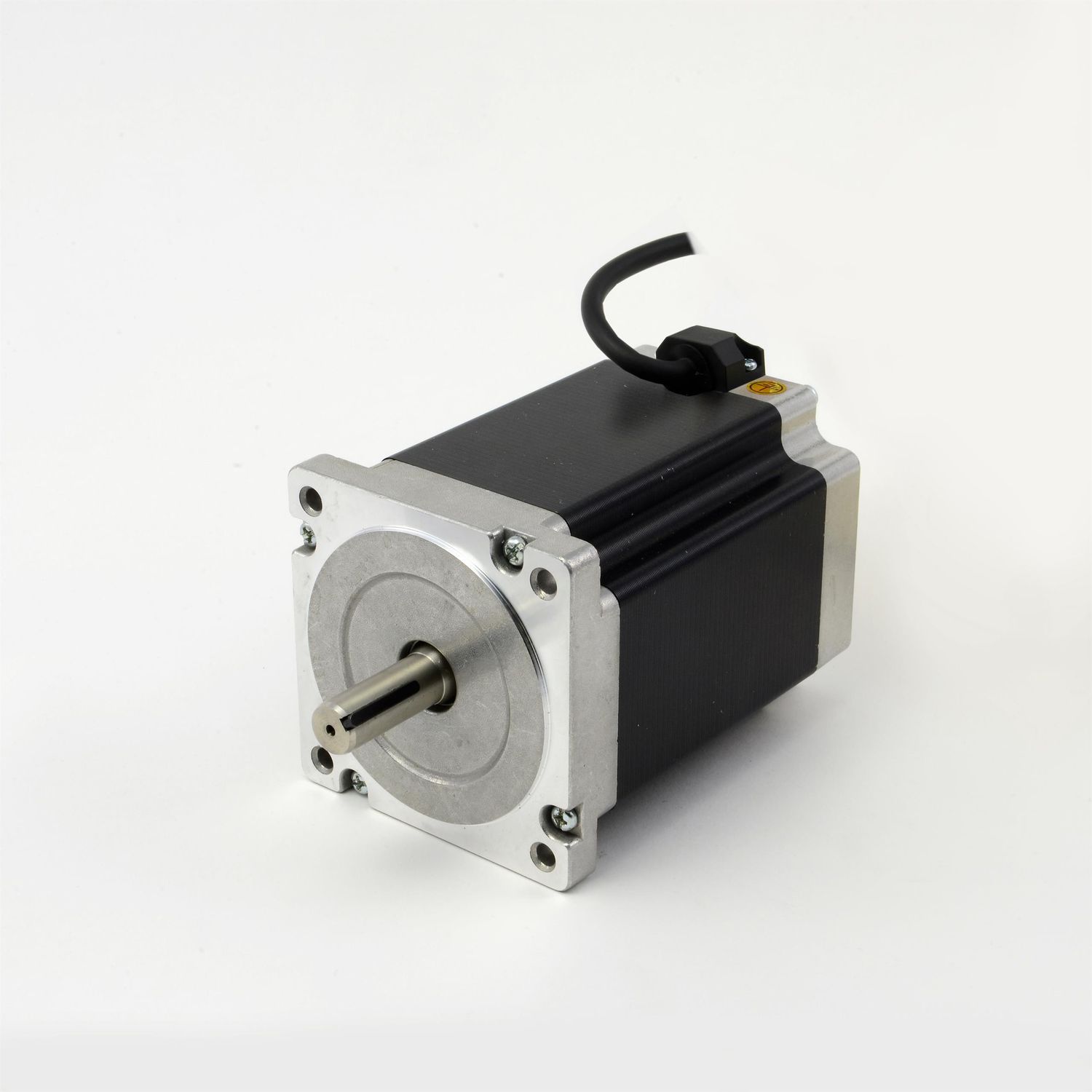

NEMA 34 stepper motor with 1000.0 Ncm holding torque
€171,04
In stock: 1 available
1
Product Details
| Flange | NEMA 34 - 86 mm square |
| Bipolar holding torque | 1000.0 [Ncm] min. |
| Step angle | 1.8 [°] ± 5 [%] |
| Steps per rotation | 200 |
| Rated voltage | 4.80 [Volt] |
| Rated current | 4.00 [A/ph] |
| Shaft | Single shaft |
| Phase resistance | 1.20 [Ohm] ± 10 [%] |
| Phase inductance | 11.00 [mH] ± 20 [%] |
| Rotor inertia | 4000 [g.cm²] |
| Wires number | 4 wires for bipolar connection |
| Wires output | Lead wires tubed |
| Ambient temperature | -20 [°C] ~ +40 [°C] |
| Temperature rise | 105 [K] |
| Humidity | 15 [%] ~ 90 [%] |
| Depth | 125.5 [mm] |
| Insulation resistance | 100 [Mohm] min. |
| Dielectric strength | 1500 [VAC 1 Minute] |
| Insulation class | Class F, 155°C |
| Class protection | IP20 |
| Max. shaft radial load | 220 [N] |
| Max. shaft axial load | 60 [N] |
| Dimensions H x L x W | 86.0 [mm] x 86.0 [mm] x 125.5 [mm] |
| Weight | 4.25 [Kg.] |
| For complete information or documents related to this product, visit this page. |
