SKU MT08HE11004M40V

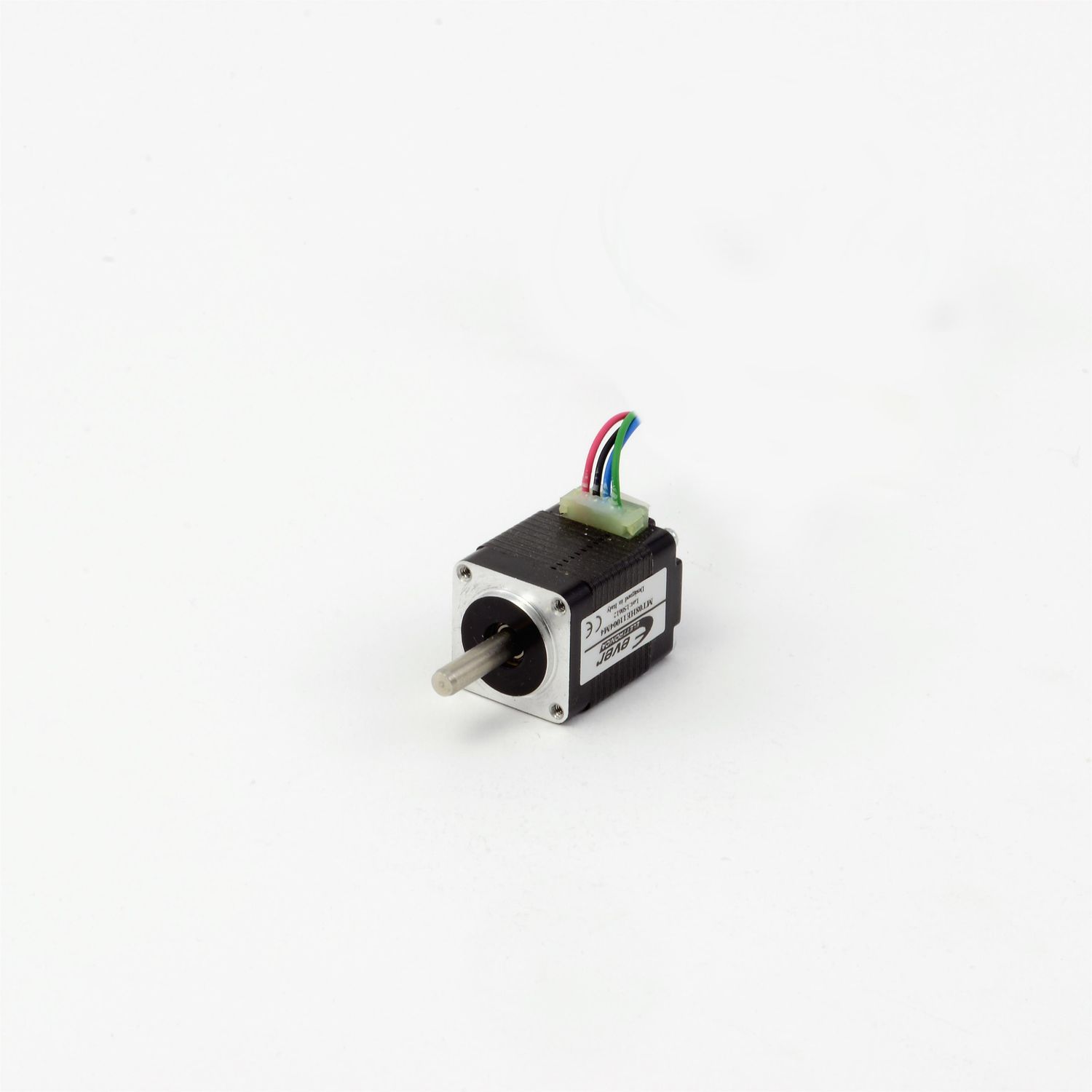

NEMA 8 stepper motor with 1.5 Ncm holding torque
€42,88
Motor connection cable
Please choose
In stock: 4 available
1
Product Details
| Flange | NEMA 8 - 20 mm squared |
| Bipolar holding torque | 1.5 [Ncm] min. |
| Step angle | 1.8 [°] ± 5 [%] |
| Step per turn | 200 |
| Rated voltage | 4.48 [Volt] |
| Rated current | 0,40 [A/ph] |
| Shaft | Single shaft |
| Phase resistance | 11.20 [Ohm] ± 15 [%] |
| Phase inductance | 3,50 [mH] ± 20 [%] |
| Rotor inertia | 2 [g.cm²] |
| Wires number | 4 lead wires for bipolar connections |
| Wires output | With connector |
| Ambient temperature | -20 [°C] ~ +40 [°C] |
| Temperature rise | 80 [K] |
| Humidity | 15 [%] ~ 90 [%] |
| Lenght | 27.8 [mm] |
| Insulation resistance | 100 [Mohm] min. |
| Dielectric strenght | 500 [VAC 1 Minute] |
| Insulation class | Class B, 130°C |
| Protection class | IP30 |
| Max radial force | --- |
| Max axial force | --- |
| Dimensions A x L x P | 20.0 [mm] x 20.0 [mm] x 27.8 [mm] |
| Weight | 0.06 [Kg.] |
| For complete information or documents related to this product, visit this page. |
NEMA 8 stepper motor with 1.5 Ncm holding torque
